Rotary die cutting tool

Rotary die cutting tool works by rotating the cutter to generate cutting force. The tool developed by the company is a special-shaped hole cutter with easy operation. It is most suitable for general machines, CNC automatic lathe, processing center and drilling machines. It can be used to make blind holes, through holes or regular/irregular polygons. Apart from standard hexagonal and square holes, special shapes such as star shape and spline can also be customized.

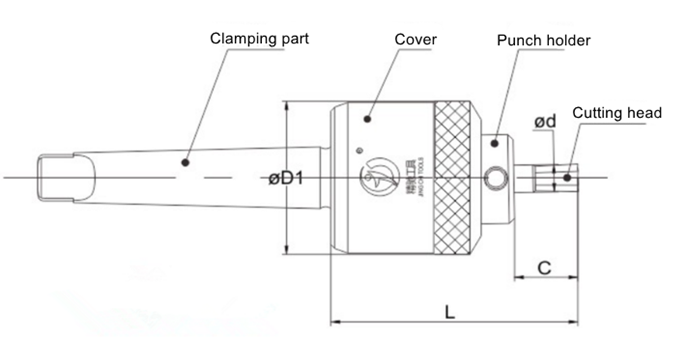

  Product drawing

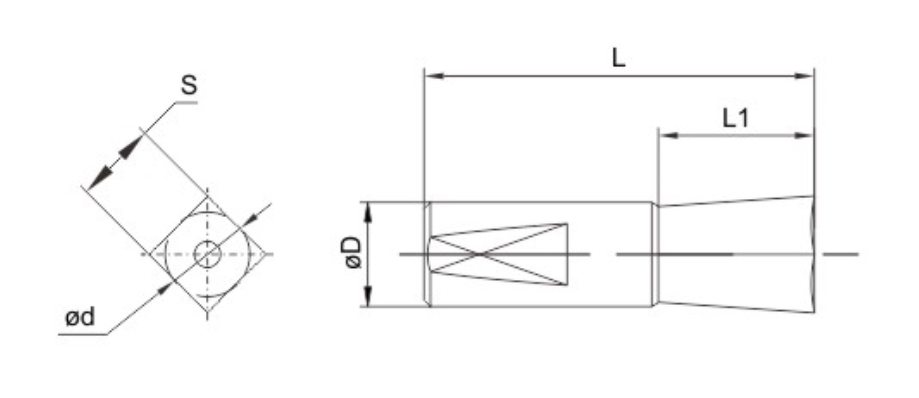

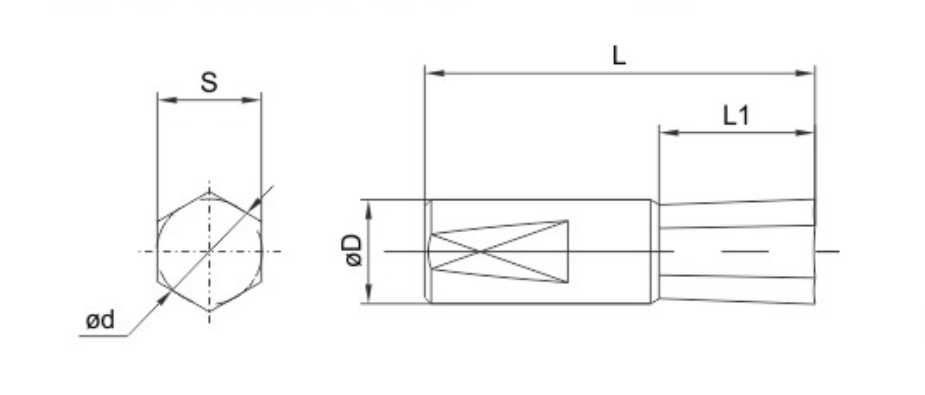

    Internal Cutting Head Dimension Chart

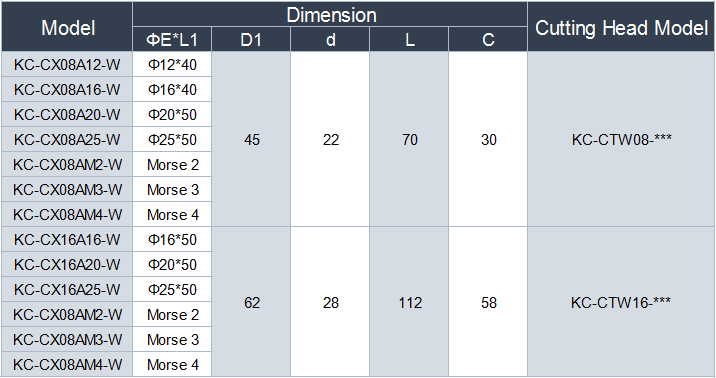

        Cutter parameters

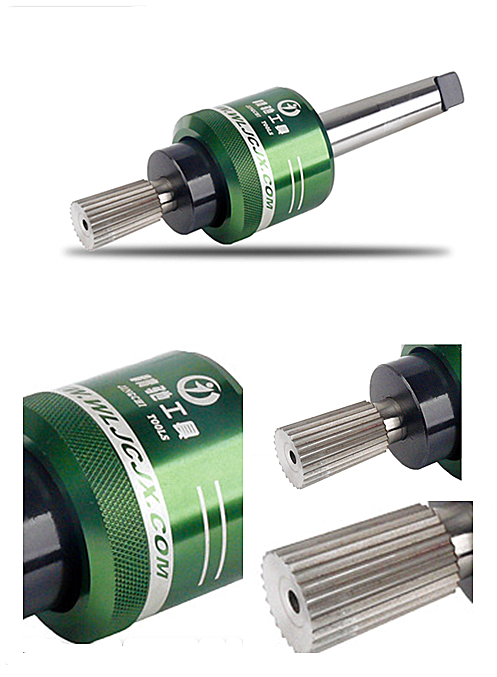

       Product display
